Nominal Size

3/16 (8)

5/32 (5)

Grip Range

0.040 in - 0.118 in (1.0 mm - 3.0 mm) (2)

0.040 in - 0.157 in (1.0 mm - 4.0 mm) (2)

0.040 in - 0.275 in (1.0 mm - 7.0 mm) (1)

0.040 in - 0.354 in (1.0 mm - 9.0 mm) (3)

0.157 in - 0.395 in (4.0 mm - 10.0 mm) (1)

0.157 in - 0.472 in (4.0 mm - 12.0 mm) (3)

0.197 in - 0.472 in (5.0 mm - 12.0 mm) (1)

Rivet Length

0.630 in (16.0 mm) (2)

0.720 in (18.3 mm) (2)

0.807 in (20.5 mm) (1)

0.840 in (21.2 mm) (1)

0.920 in (23.3 mm) (2)

0.945 in (24.0 mm) (1)

0.979 in (24.8 mm) (1)

1.070 in (27.1 mm) (2)

1.087 in (27.6 mm) (1)

Stem Material

Aluminum (13)

Body Material

Aluminum (13)

Series

0BF01 (10)

BUDAA (3)

Rivet Type

Bulbex® style blind rivet (import) (3)

Original Bulbex® blind rivet (10)

Head Type

Domed (13)

Shear Strength

135 lbf (0.60 kN) (5)

175 lbf (0.78 kN) (6)

202 lbf (0.89 kN) (2)

Tensile Strength

225 lbf (1.00 kN) (5)

240 lbf (1.07 kN) (6)

270 lbf (1.20 kN) (2)

Drill Size

11/64 in (5)

13/64 in (8)

Head Width

0.315 in (8.0 mm) (1)

0.321 in (8.2 mm) (4)

0.386 in (9.8 mm) (2)

0.396 in (10.1 mm) (6)

Bulbex® style blind rivets (non-structural)

1 - 13 of 13

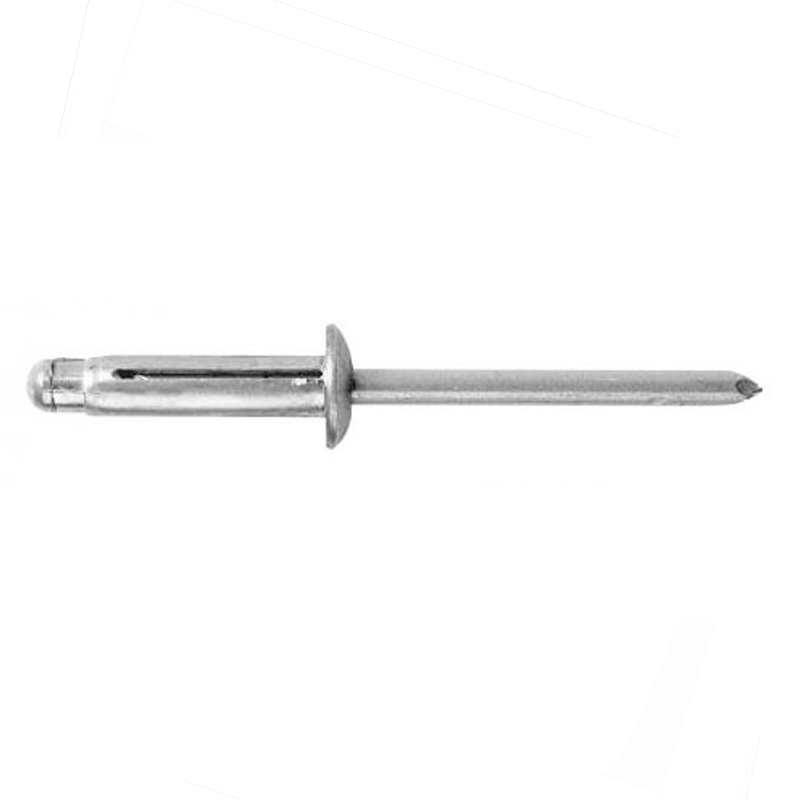

BUDAA5395V

Bulbex® style non-structural blind rivet 5/32 grip 0.157 - 0.395 aluminum / aluminum domed head

BUDAA6354V

Bulbex® style non-structural blind rivet 3/16 grip 0.040 - 0.354 aluminum / aluminum domed head

BUDAA6472V

Bulbex® style non-structural blind rivet 3/16 grip 0.157 - 0.472 aluminum / aluminum domed head

OBF01-00516-100

Bulbex® non-structural blind rivet 5/32 grip 0.040 - 0.118 aluminum / aluminum domed head

OBF01-00516V

Bulbex® non-structural blind rivet 5/32 grip 0.040 - 0.118 aluminum / aluminum domed head

OBF01-00523-100

Bulbex® non-structural blind rivet 5/32 grip 0.040 - 0.275 aluminum / aluminum domed head

OBF01-00531V

Bulbex® non-structural blind rivet 5/32 grip 0.197 - 0.472 aluminum / aluminum domed head

Discontinued

OBF01-00619-100

Bulbex® non-structural blind rivet 3/16 grip 0.040 - 0.157 aluminum / aluminum domed head

OBF01-00619V

Bulbex® non-structural blind rivet 3/16 grip 0.040 - 0.157 aluminum / aluminum domed head

OBF01-00625-100

Bulbex® non-structural blind rivet 3/16 grip 0.040 - 0.354 aluminum / aluminum domed head

OBF01-00625V

Bulbex® non-structural blind rivet 3/16 grip 0.040 - 0.354 aluminum / aluminum domed head

OBF01-00630-100

Bulbex® non-structural blind rivet 3/16 grip 0.157 - 0.472 aluminum / aluminum domed head

OBF01-00630V

Bulbex® non-structural blind rivet 3/16 grip 0.157 - 0.472 aluminum / aluminum domed head

1 - 13 of 13
