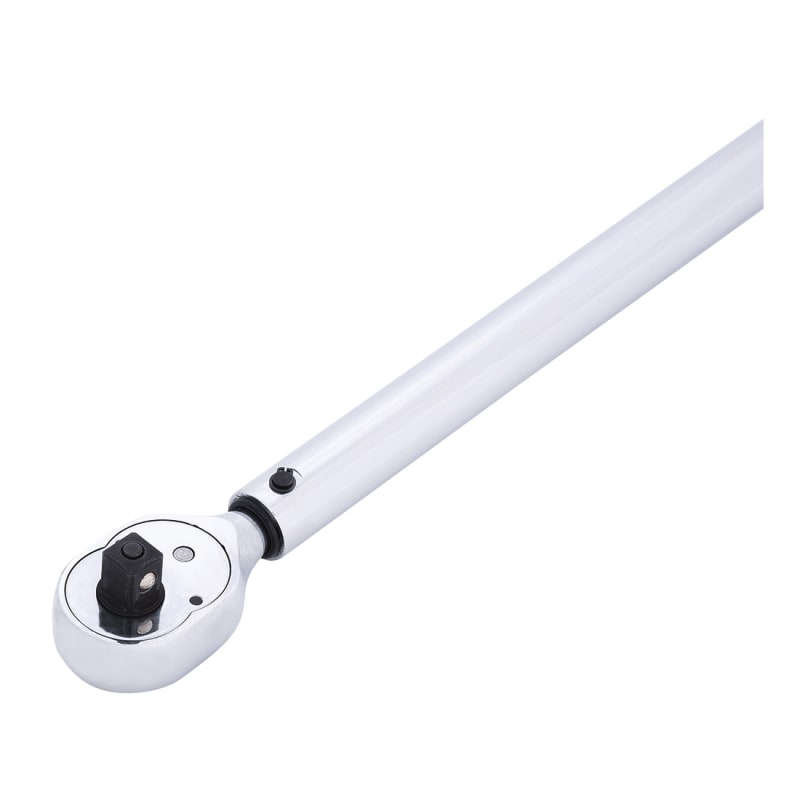

Industrial Series Torque Wrench - 1/2in DR 50-250 ft/lb

560-718976

Downloadable Documents :

Features

  • All metal construction for the toughest, most demanding industrial applications
  • Chrome molybdenum ratchet pawls and teeth heat treated for maximum durability and high torque loads
  • Quick release ratchet head holds sockets and accessories safely and securely
  • Accurate to +/-3% clockwise and +/-6% counterclockwise
  • German-made spring is precompressed 1200X before installation to ensure spring does not change tension over time
  • Life cycle tested to 12,000 cycles and 130% of rated capacity
  • Hardened steel tube for long life and improved accuracy
  • Knurled aluminum handle for safe, slip-resistant grip
  • Extra dark scale and adjustment ring printing for improved visibility
  • Dual scales for use on imperial or metric components
  • All units calibrated in both directions and shipped complete with factory calibration certificate

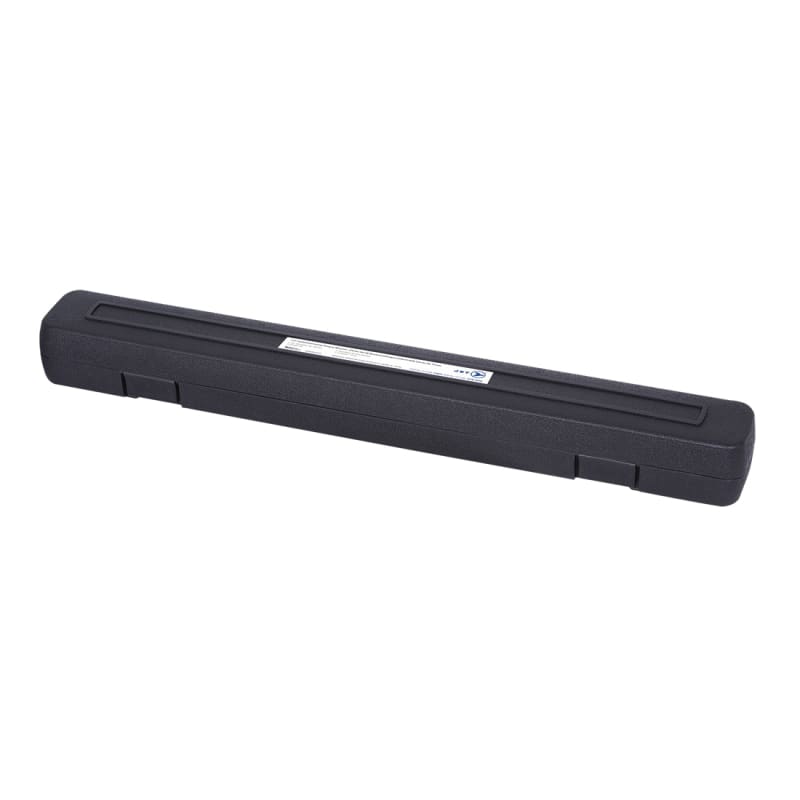

  • Complete with heavy duty blow mold case

Technical Information

Handle Type
Knurled
Drive Size
1/2 in
Torque Range
50 to 250 ft-lb
Rotation Type
CW/CCW
Overall Length
24 in
Material
Metal
Series
Industrial
Type
32-Teeth
Accuracy
+/-3% CW and +/-6% CCW
